High Efficiency and NEMA Premium Explosion Proof Motors in Stock!

Explosion Proof motors are suitable for applications requiring UL or CSA certification for hazardous locations. Thermally protected with thermostats, all motors manufactured are submitted to hydrostatic as well as other routine testing at the factory to ensure compliance to the required specifications. WEG NEMA Premium Efficiency and High Efficiency Explosion Proof motors are specifically designed to meet or exceed all EPAct requirements for energy efficient motors.

explosion proof motors

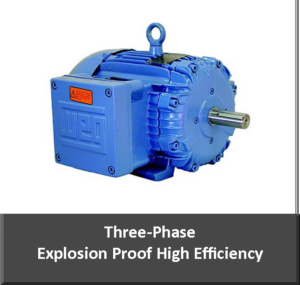

Three Phase Explosion Proof High Efficiency

  • Efficiency Certification number CC029A according to US Department of Energy Regulations
  • Three-phase, 60Hz, service factor 1.15
  • Voltage: 208-230/460, 460 or 575V
  • 143T up to 586/7 cast iron frame
  • Squirrel cage rotor / Aluminum die cast
  • Totally Enclosed Fan Cooled – TEFC (IP54)
  • Ball bearings are supplied as standard
  • Cast iron frame
  • Class ‘F’ insulation
  • Temperature rise: Class ‘B’ (80ºC)
  • Inverter Duty as per CSA Standard (LR50962)
  • NEMA dimensions, ratings design ‘B’
  • Continuous Duty (S1)
three phase explosion proof motor

Three Phase Explosion Proof NEMA Premium

  • Efficiency Certification number CC029A according to US Department of Energy Regulations
  • Three-phase, 60Hz, service factor 1.15
  • Voltage: 208-230/460, 460 or 575V
  • Squirrel cage rotor / Aluminum die cast
  • Totally Enclosed Fan Cooled – TEFC (IP54)
  • Ball bearings are supplied as standard
  • Cast iron frame, Class ‘F’ insulation
  • Temperature rise: Class ‘B’ (80ºC)
  • Inverter Duty as per CSA Standard (LR50962)
  • NEMA dimensions, ratings design ‘B’
  • Continuous Duty (S1)
