Check out our Medium Voltage Motors!

WEG Medium Voltage Motors present design optimized construction and are manufactured in robust motor enclosures for all applications including severe service. Recent investments in WEG’s North American facility takes production capability to a new level. Frames are in stock and the electrical panels are built to order. Choose from a standard or a customized design.

Applications



  • Pumps
  • Mills
  • Fans
  • Centrifugal machines
  • Crushers

  • Presses
  • Conveyor belts
  • Elevators
  • Packaging equipment
  • Grinders

Standard Features

button-three-phase-odp-ip23-medium-voltage-copy1

Three Phase ODP IP 23

  • Three-phase, II, VI and VI poles, 60Hz
  • Degree of protection: IP23
  • Voltage: 1.2 to 5.0 kV
  • Frame size: 5010/11T
  • Material: Cast iron
  • Endshields and terminal box material: Cast iron
  • NEMA dimensions
  • NEMA Design “A”
  • Service factor: 1.15
  • Class “F” insulation (80K temperature rise)
  • Continuous Duty (S1), 104°F ambient (40ºC)
medium voltage motor

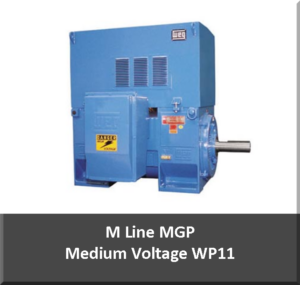

M Line MGP

  • 2300 to 6600 V
  • 2 to 8 poles
  • 5000 to 6800 frames
  • Mounting: horizontal
  • Service duty: continuous
  • Class of insulation: F
  • Service factor: 1.0
  • Temperature rise: 80°C by resistance
  • Ambient temperature: 40°C
  • Altitude: 1000 m

W22 Medium Voltage

  • Three-phase, IP55, TEFC
  • Frequency: 50 or 60 Hz
  • Output: 120 up to 600 HP
  • Number of Poles: 2, 4, 6 and 8
  • Frames: L447/9 to 588/9
  • Mounting: B33R(D)
  • Voltage: 1.2 to 6.6 kV
  • Class “F” insulation (ΔT=80K)
  • Continuous duty: S1
  • Service factor: 1,15
